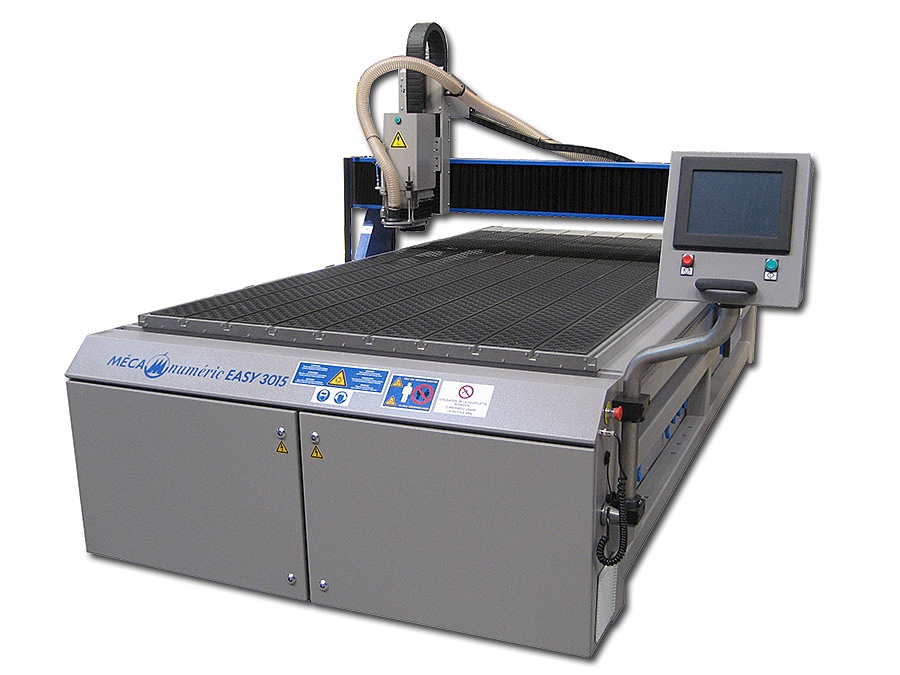

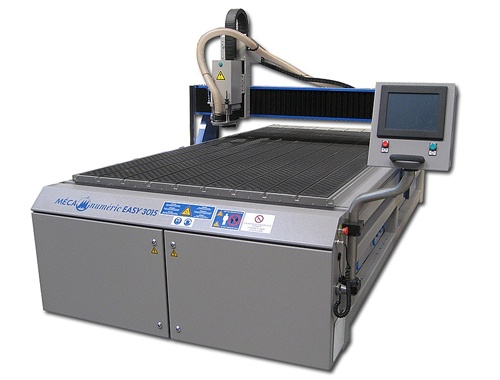

MECAEASY

Faster, endowed with a stiffened frame and gantry, equipped with more powerful spindles, the MECA EASY will meet your most demanding productions in 2D as in 3D

  • Description
  • Technical datas
  • Fields of activity

STRENGHTS

  • Mono-bloc frame in high inertia welded steel and mobile gantry in steel.
  • Milling speed up to 18m/min
  • Plate : fixed table made of wide section of aluminium profiles .
  • Guiding by grinded rails and preloaded circulation ball bearings.
  • Transmission by accuracy ball screw on the 3 axes.

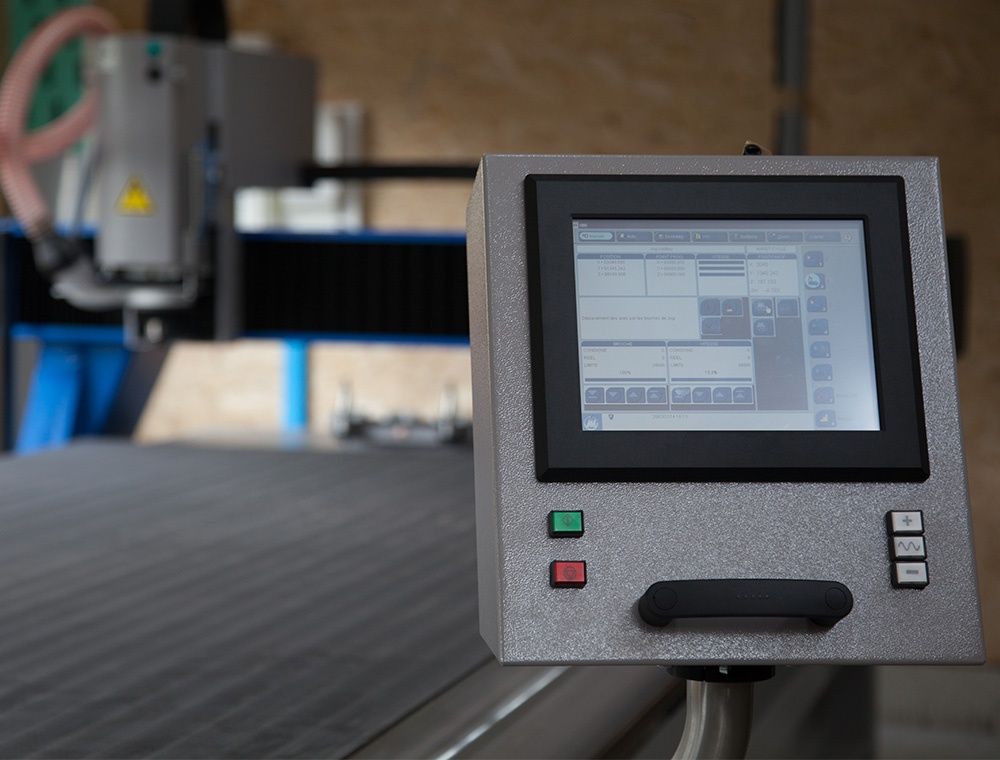

  • CN7000 digital monitoring with colour touch screen and motorization by brush-less servo-motors.
  • A range of 8 formats for the versatility.
  • Z 350 option for the 3D applications.
  • Quality and performances matched to the production.
  • The simplicity of use
  • Compliant with the European safety directives.
  • Many options : servo-motors "brush-less", micro- lubrication, automatic tool changer, vacuum table (with turbine or vacuum pump), high frequency spindle, engraving spindle with nose follower, fourth axis.



OPTIONS

  • Automatic aspirating nose
  • Tool cooling system
  • Industrial chip extractor
  • Camera tracking vision
  • Multi-tool head for knife cutting
  • 4th axis horizontal divider

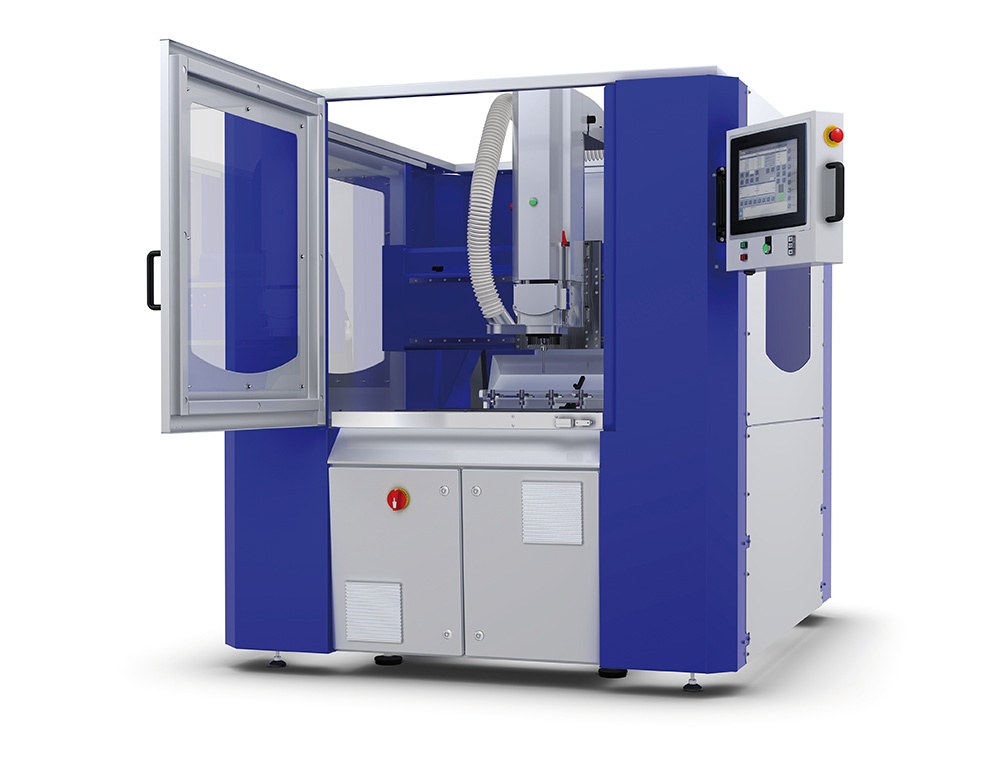

  • Protective enclosure
  • Automatic door...

TECHNICAL DESCRIPTION

  • Structure: high inertia steel welded frame and gantry, fixed table.
  • Guidance: grinded steel rails and preloaded ball bearings.
  • Transmission: high precision ball screw on all axes.
  • Motorisation: AC Brushless servo motors



DIMENSIONS

  ME 0507 ME 0710 ME 1007 ME 1510 ME 3015
X stroke  520 720 1050 1520 3020
Y stroke  750 1020 750 1050 1520
Z stroke  200/350 200/350 200/350 200/350 200/350
Maximum material width 900 1250 900 1250 1650
Passage under gantry 210/360 210/360 210/360 210/360 210/360
