NORMAPROFIL - T series

Fixed table, mobile gantry, 4 cartesian axes, 2 polar axes

  • Description
  • Technical datas
  • Fields of activity

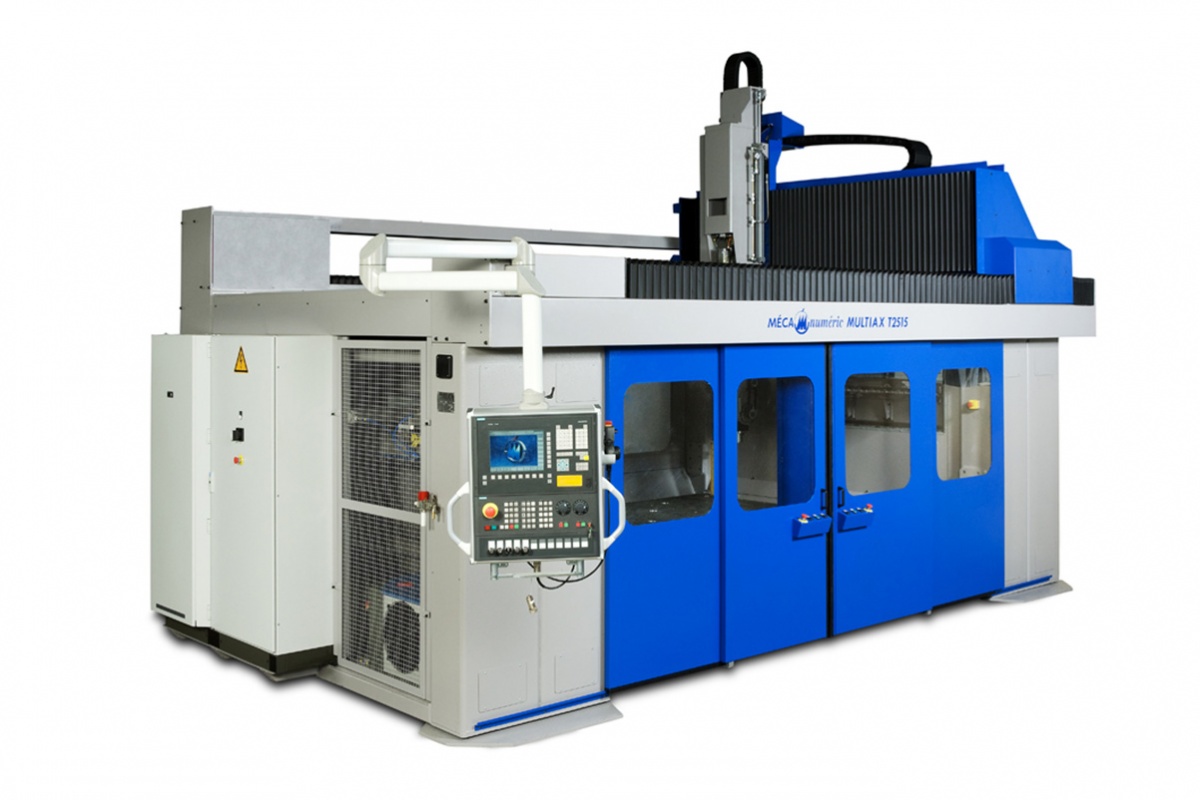

The complete and versatile NormaProfil T series 5-axis CNC milling machine is optimized for machining large parts produced by thermoforming.



TECHNOLOGIES

  • Transmission by ball screw on the 4 Cartesian axes (X1, X2, Y, Z)
  • 2 rotary axes (C: +/- 200 ° and A: +/- 200 ° depending on the electrospindle)
  • Many electrospindles available

The NormaProfil T series is optimized for workpiece machining in the following materials:

  • Plastic and composites
  • Synthetic resins
  • PU and PS foam
  • Wood and wood products
  • Aluminum
  • Brass and alloys

SOME OF THE POSSIBLE OPTIONS

  • Front and rear automatic doors
  • Movable partition for commuter work (manual or automatic)
  • Vacuum plate for holding parts or tools (vacuum technology by side channel turbines or by vacuum pump)
  • Static tool magazine (6,10,15 tools)
  • Tool measuring probe
  • Sound-absorbing full cover
  • Other useful formats

NC and MOTORIZATION

  • SIEMENS SINUMERIK digital control: X, Y, Z, C, A axes

STN 10.4 inch OP010 color screen.
Brushless motorization type 1FK7 with digital variators.
Air-conditioned electrical cabinet.



  • SIEMENS SINUMERIK digital control: X, Y, Z, C, A axes

STN 10.4 inch OP010 color screen.
Brushless motorization type 1FT6 with digital drives.
Air-conditioned electrical cabinet.



  • NUM numerical control: X, Y, Z, C, A axes

12 inch TFT flat screen.
MP03 operator panel.
BPH brushless motorization with digital variators.
Air-conditioned electrical cabinet.





MAIN CHARACTERISTICS

  • Speed in mm / sec: 650
  • Resolution in mm: +/- 0.05
  • Repeatability in mm: +/- 0.025 at 20 ° C



DIMENSIONS

  T2515
X stroke 3100
Y stroke 2100
Z stroke 870



Parts for racing motorcycles

Parts for racing motorcycles
