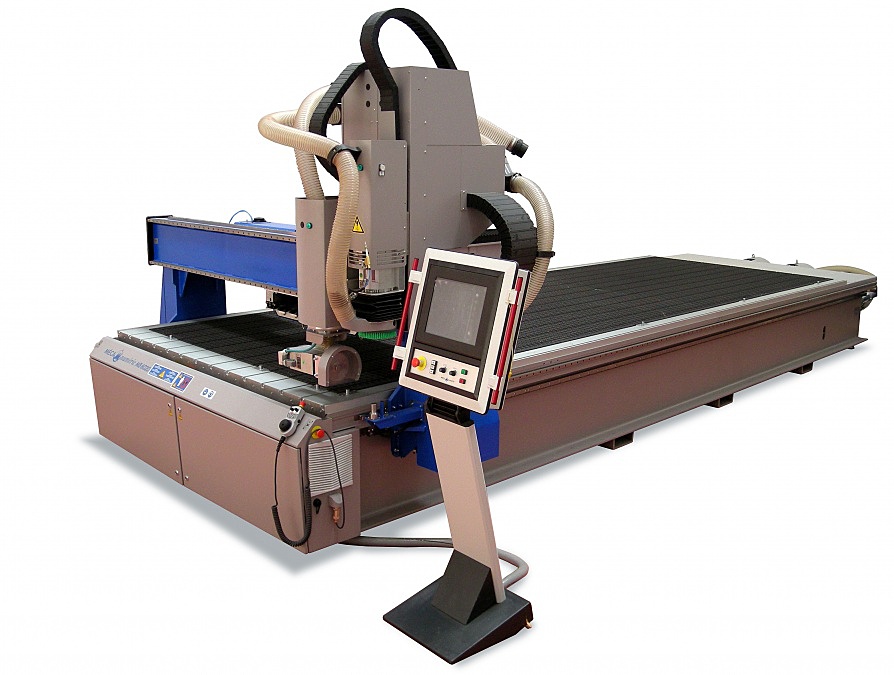

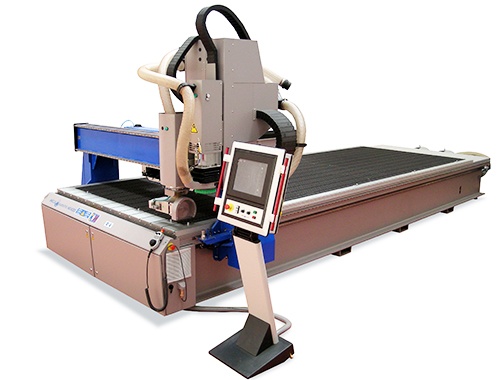

MULTI-SPINDLE CNC 4-AXIS MILLING MACHINE


High productivity system for the rapid cutting of sheet materials in the building (facades), sign or fitting out of commercial vehicles (refrigerated trucks, etc.) sectors.

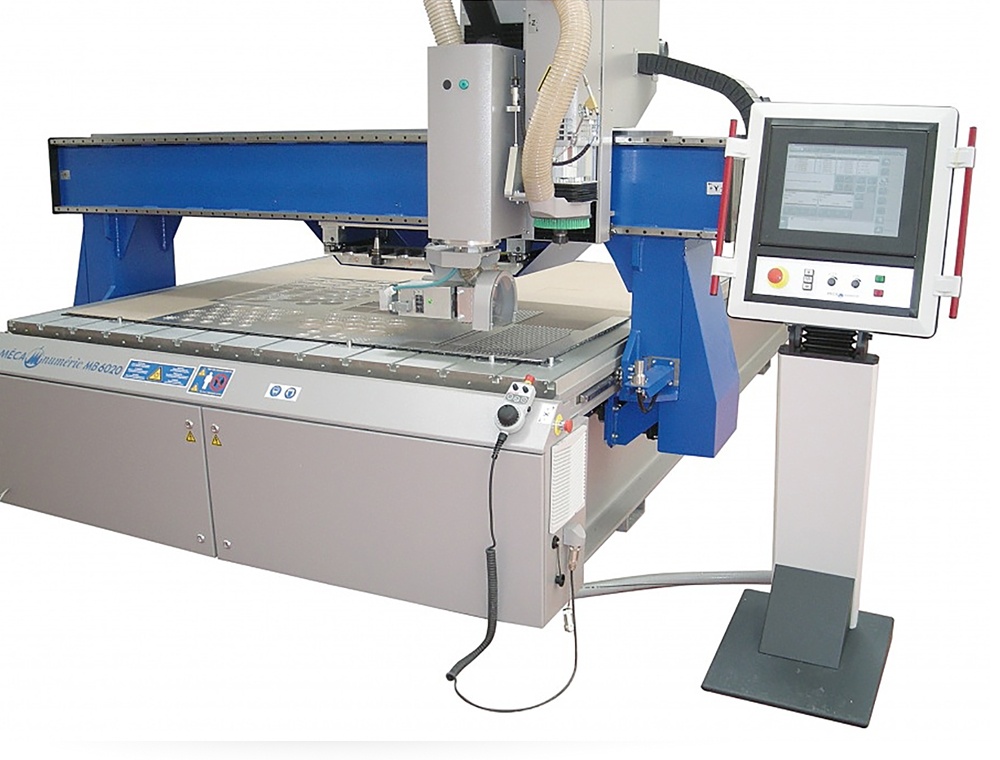

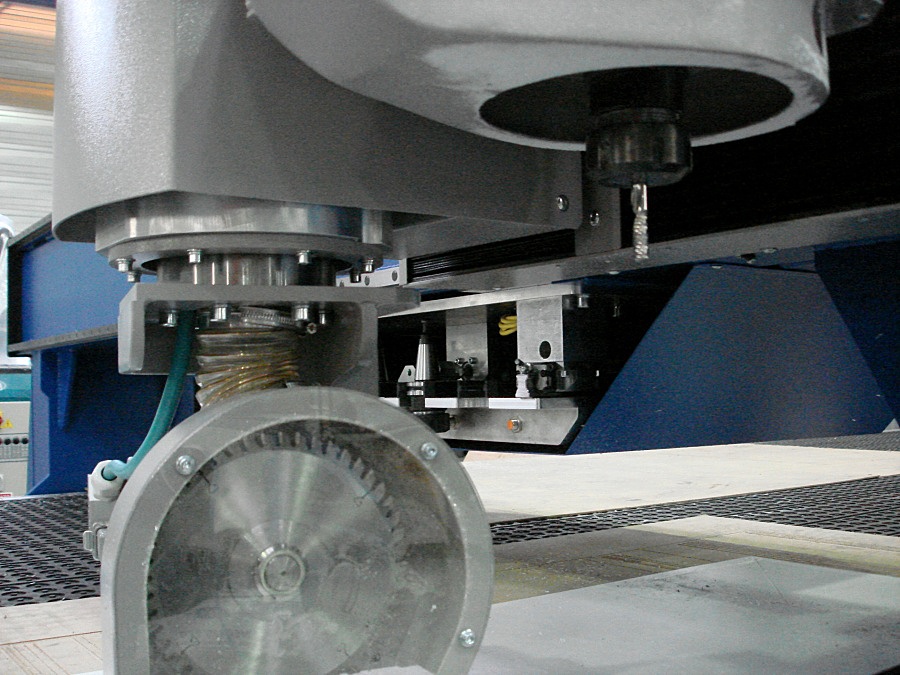

4-axis CNC milling machine that can be equipped with a high-power vertical electrospindle and a horizontal electrospindle that can be rotated 360 degrees.


TECHNOLOGIES



  • Kinematic assembly with fixed table and mobile gantry.
  • Monobloc frame in mechanically welded steel.
  • Mobile gantry in mechanically welded steel.
  • Vacuum tray in aluminum profile.
  • Support of the plates by the vacuum generated either by lateral channel turbines or by vacuum pumps with nozzles.
  • Automatic selection of zones by solenoid valves. Timing stops automatically retractable plates.
  • Motorization by AC Brushless servomotors on the 6 axes (X1-X2-Y-Z1-Z2-C).
  • Transmission by high precision rack and pinion systems for X and Y axes, ball screw on Z axes, gearbox without play on C axis
  • Guides by rectified rails and pre-loaded pads with ball circulation.
  • MECANUMERIC CN7000 Digital Control with 15 inch touch screen, integrated hard drive, Ethernet port, USB port. Import of files in ISO code.
  • Wide choice of horizontal and vertical electrospindles.


Some of the materials that can be used (depending on the electrospindle and the tool chosen):

  • Rigid plate plastics (PMMA-PC-PS-PVC-ABS ..)
  • Expanded plastics and cellular sheets
  • Rigid foam (PU- PS-…)
  • Semi-rigid foams (KAPA line®,…)
  • Composite materials for the building industry: Alucobond®, Dibond®, Reynobond®, ..
  • Composite materials for industry (polyester resin filled with glass fiber, carbon fiber, etc.)
  • Wood and wood products
  • Polyester resins
  • Light alloys aluminum base or copper base



SOME OF THE POSSIBLE OPTIONS

  • Chip extraction by a wide choice of industrial suction groups.
  • Different vacuum plates.
  • Tool magazine on board (capacity 6 cones) with tool length sensor.
  • Tool lubrication system / Tool / material cooling system
  • Suction zones with automatic selection controlled by numerical control.
  • SIEMENS SINUMERIK® 840 Di digital control and SIEMENS servomotors.
  • Retractable timing stops (5 lateral stops and 3 frontal stops for MB60xx or 3 and 2 for MB42xx).
  • Automatic dispenser for VILMILL® support film.
  • Remote electronic crank.
  • Safety zone around machine controlled by radar or light curtains.
  • Automatic unloading loading system by spreader or interchangeable tables.

TECHNICAL CARACTERISTICS :

  • Maximum speed: 1000 mm / sec
  • Acceleration: 1 ms²
  • Repeatability: +/- 0.05 mm
  • Resolution: 0.001 mm

DIMENSIONS

  MB 6020
X stroke 6050
Y stroke 2070
Z-axis travel in mm (maxi/working travel) 340/100
