MECASIGN NL

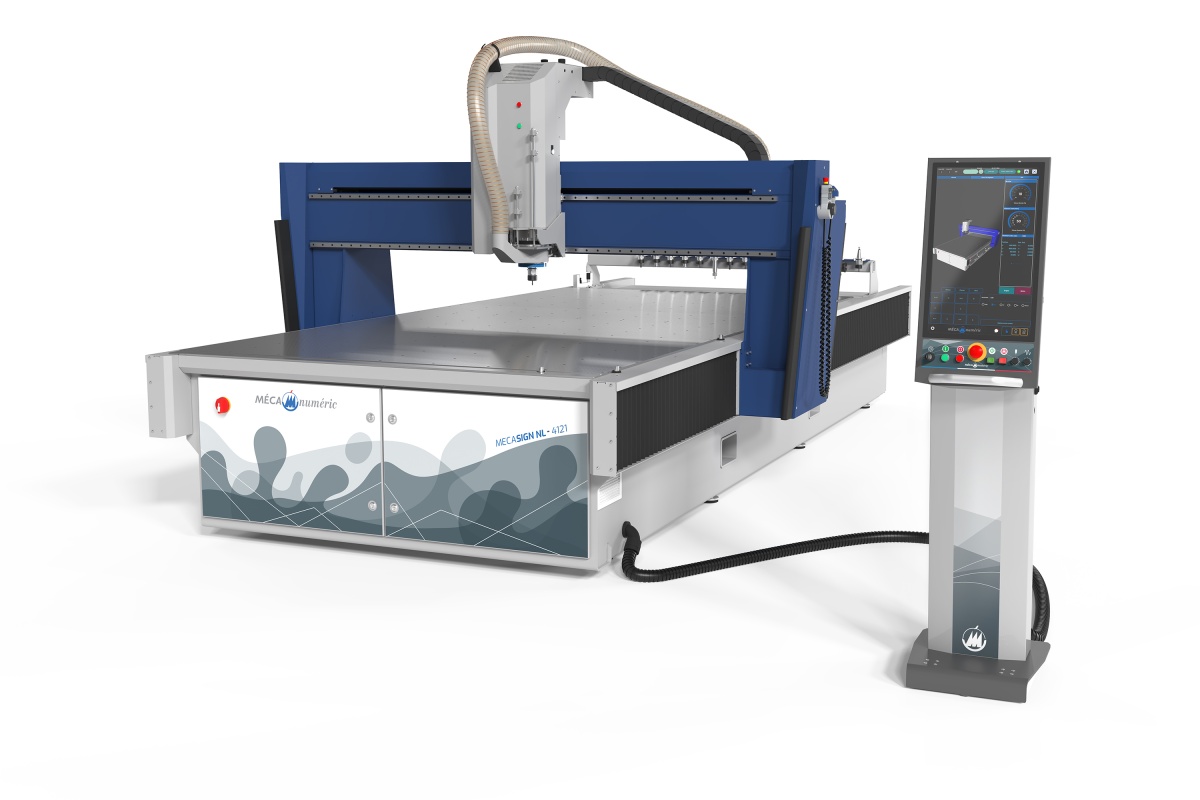

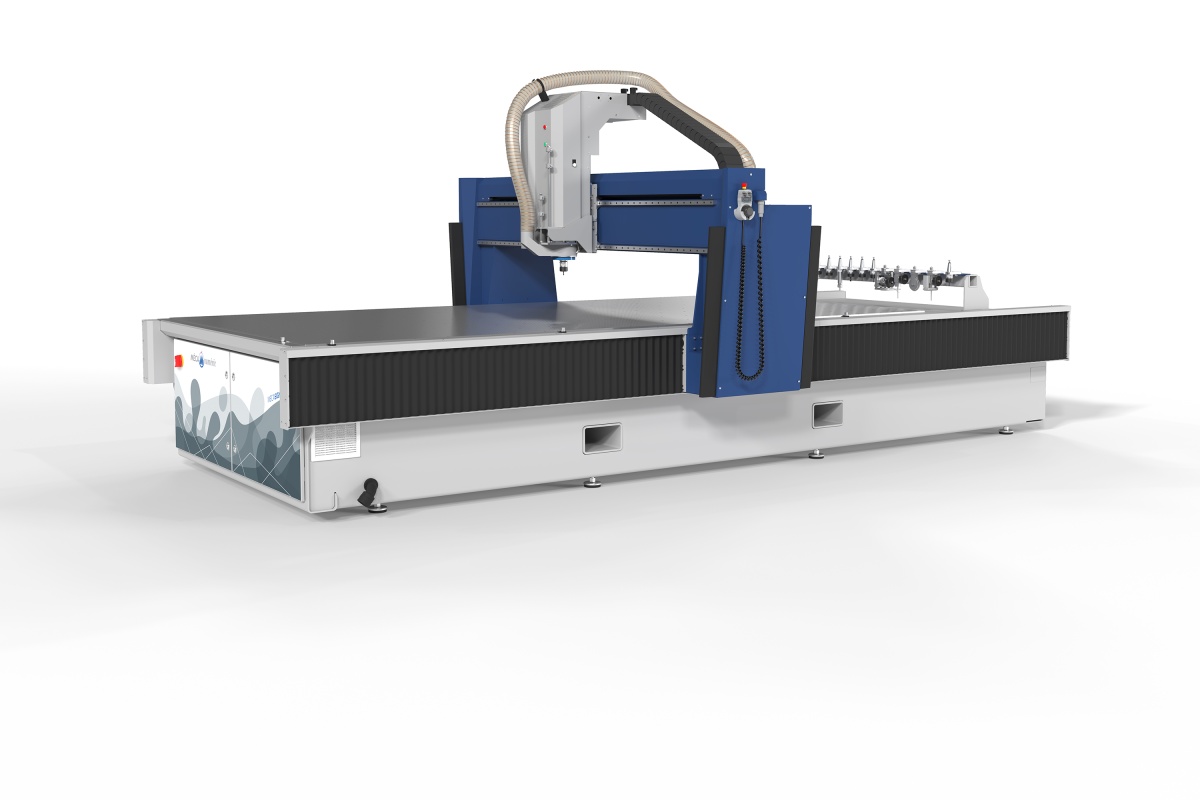

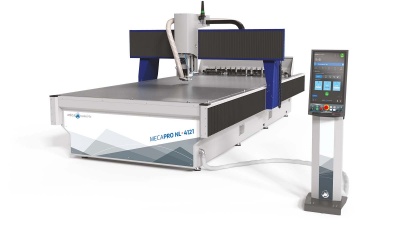

A robust and 100% versatile milling machine

  • Description
  • Technical datas
  • Fields of activity

Designed for easy use and maximum performance



Thanks to numerous features, the MECASIGN NL is a versatile machine which includes everything necessary for precise and rapid cutting and machining.



STRENGHTS



All-in-one machine:

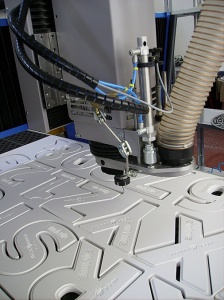

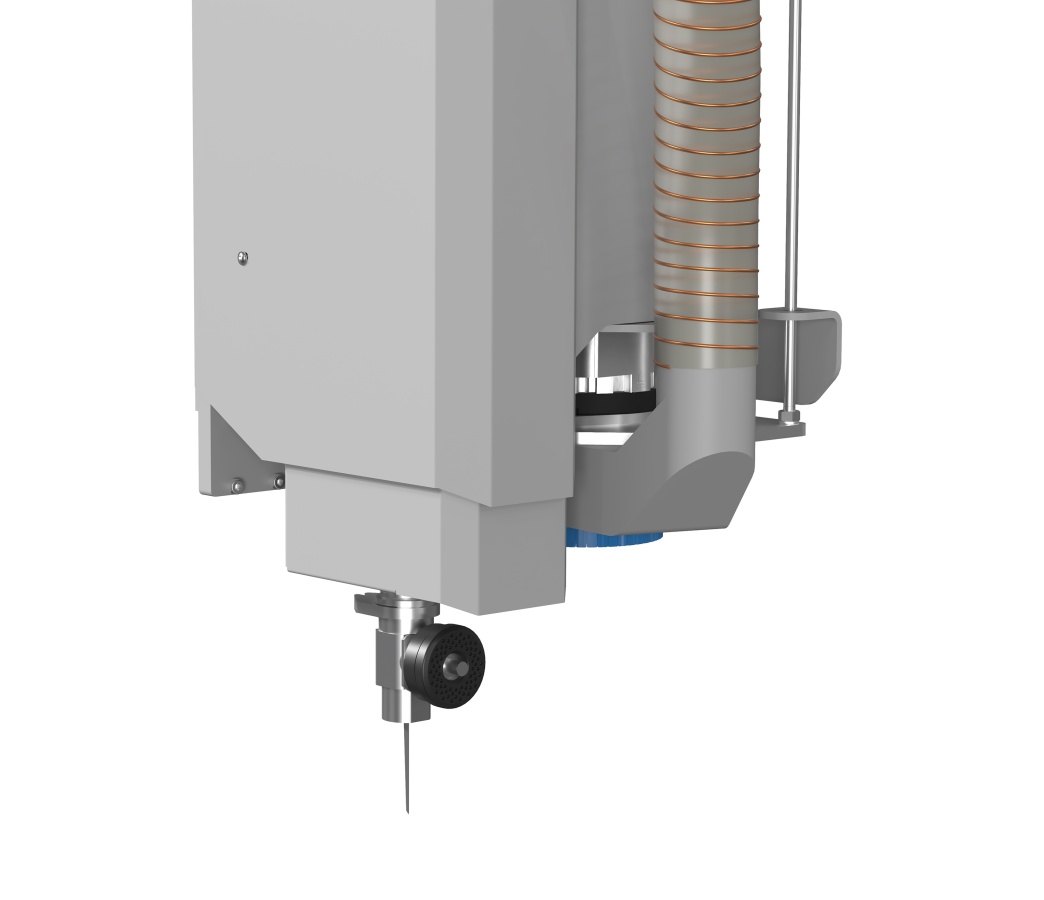

Packaged machine including all essential options for milling only or milling + knife cutting with the additional lateral head for:

  • vertical blade (vibrating or not)
  • orientable blade (vibrating or not)
  • shaped wheels
  • disk blade
  • scoring stylus for surface marking

Many features included:

  • aluminium vacuum table with independant suction zones
  • adjustable suction nozzle
  • alignment laser
  • retractable indexing stops...

Perfect equipment for cuttig and machining of a wide range of materials (plates or rolled):

  • Polymers: PMMA, PEHD, PS, PET, PETG, PU, PC, ABS, PVC… in solid or honeycomb panels
  • Wood and its by-products: MDF, TRESPA and others phenolic derivatives, natural wood…
  • Lights alloys: Aluminium, Brass, Copper, Zinc…
  • Composites: Alucobond®, Dibond® and similar, Glass/Epoxy, Carbon/Epoxy…
  • Honeycomb panels: Nida®, Nomex®…
  • Machinable plates for molds and models
  • Rubber and derivatives
  • Foams with all densities
  • Paper, cardboard and derivatives
  • Plastics with small thickness (PVC, PS, PET, PETG, ABS, PC…)

High tool shop:

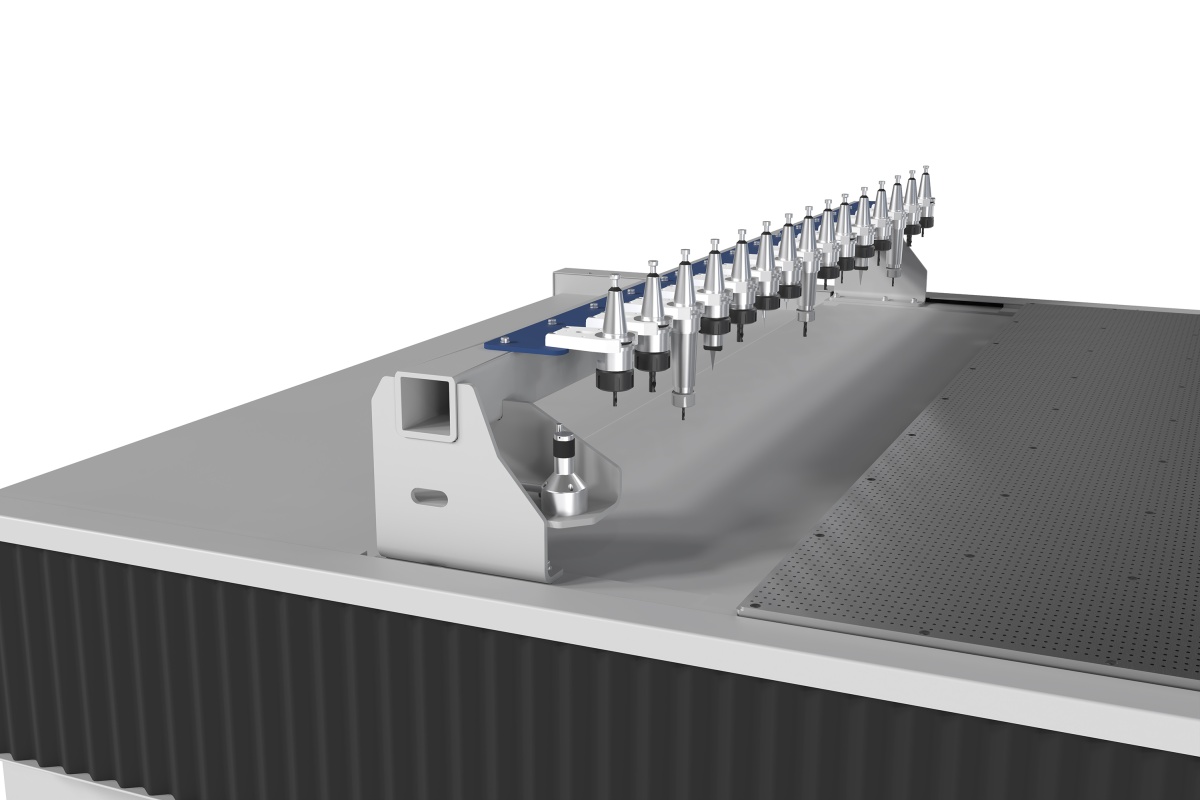

  • 10 to 15 slots for ISO30 cones and/or heads for special tools
  • 2 sensors available (according to the chosen configuration)

Last generation numerical control:

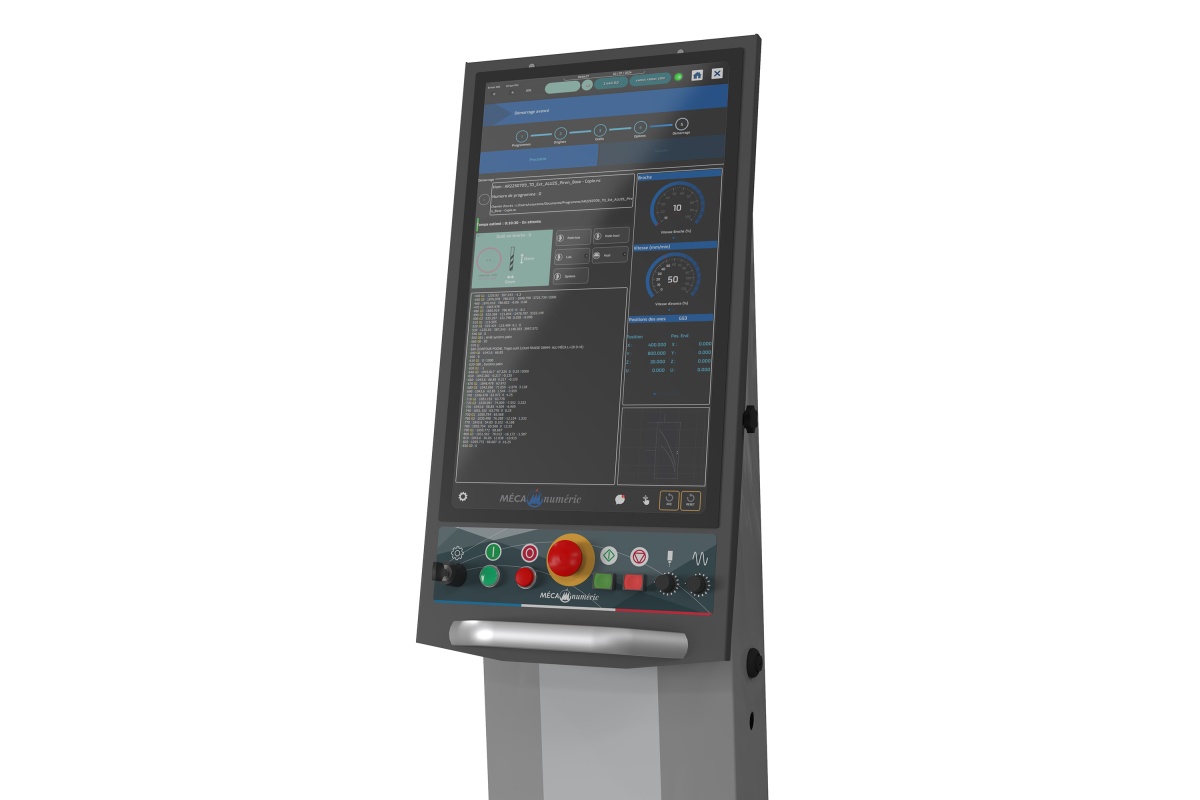

  • 21 inches vertical touch screen on mobile control panel
  • Modern, simple and user-friendly HMI with online operator guidance (to avoid oversights and errors)

TECHNICAL FEATURES

  • Structure : Monobloc chassis and mobile gantry in mechanical welded high inertia steel.
  • Table : Aluminum fixed table with consumable top cover in option.
  • Guidance : Grinded prismatic rails and preloaded ball bearings.
  • Transmission : Ball screw with preloaded nuts on all axes (two ball screws on X axis).
  • Motorization : Brushless motors with absolute encoders on all axes (two motors on X axis).



DIMENSIONS



  MECASIGN NL 3121 MECASIGN NL 4121
X axis travel in mm 3085 4085
Y axis travel in mm 2070 2070
Y axis travel in mm 245 245
Passage between uprights (reference points not used) 2260 2260
Passage under gantry or under spindle nose in mm 320 320
Length in mm - pumps not included 4470 5470
Width in mm 2963 2963
Height in mm 2250 2250
Average weight in kg 3700 4500

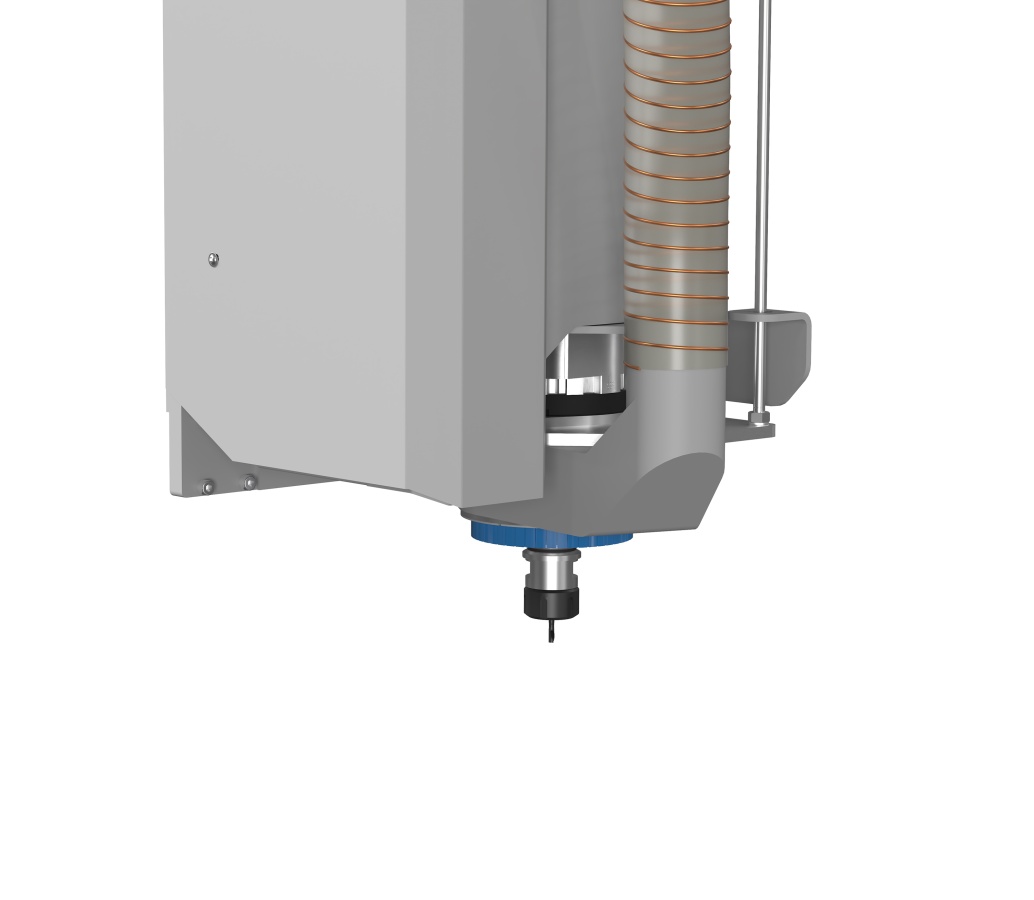

POWERFUL ELECTROSPINDLE WITH HIGH ROTATION SPEED



  HSD951-SM
Max power S1-S6 in kW 8 - 9,6
Max torque S1/S6 6,4 / 7,7 Nm
at 12 000 rpm
Rotation speed in tr / min 0 to 24 000 rpm
Coolant AIR
Cooling Fan
Tool changing Automatic ISO30
Part for POS application

Part for POS application

Relief sign in wood by product (MDF)

Relief sign in wood by product (MDF)

Marking

Marking

PVC signboard

PVC signboard
