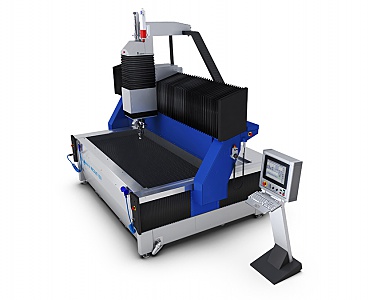

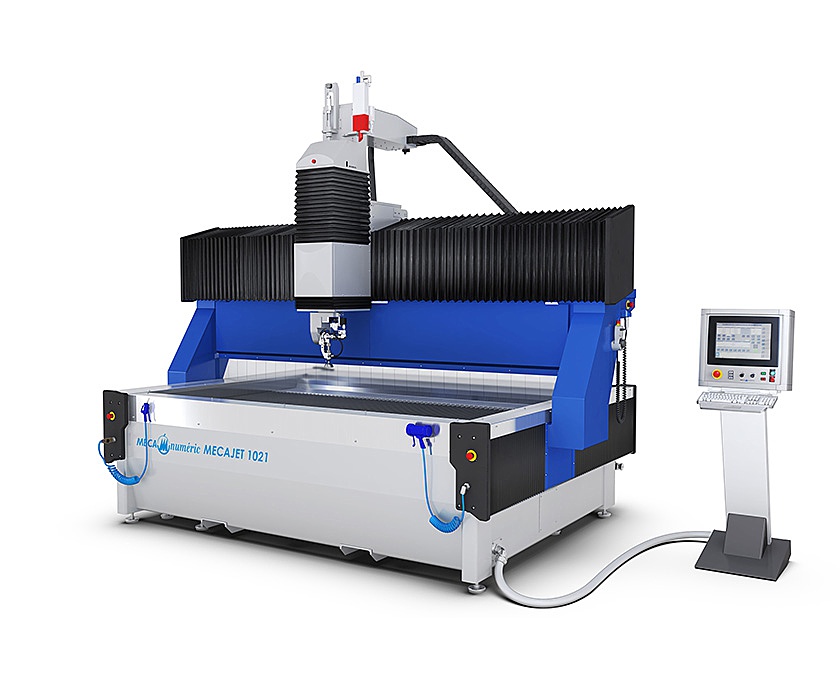

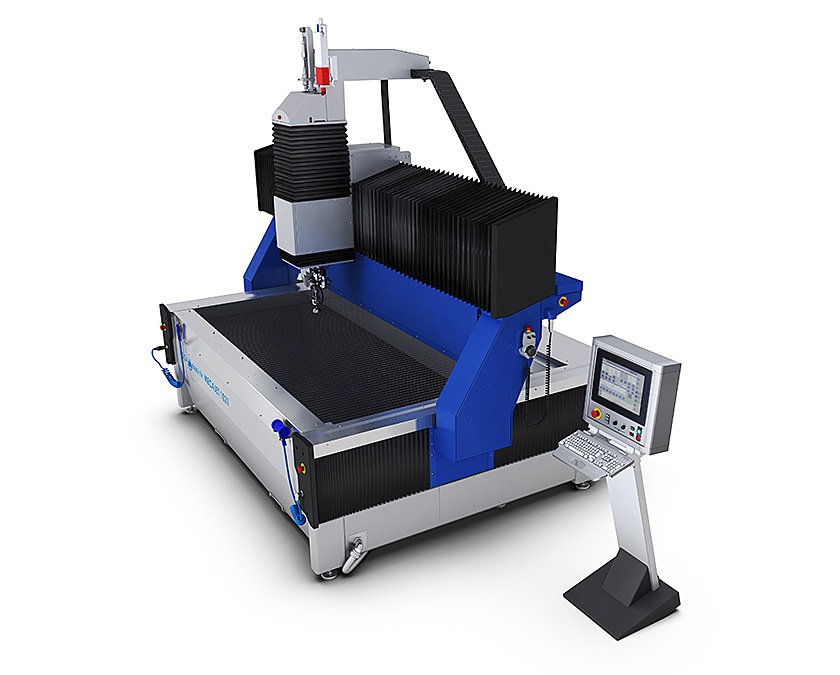

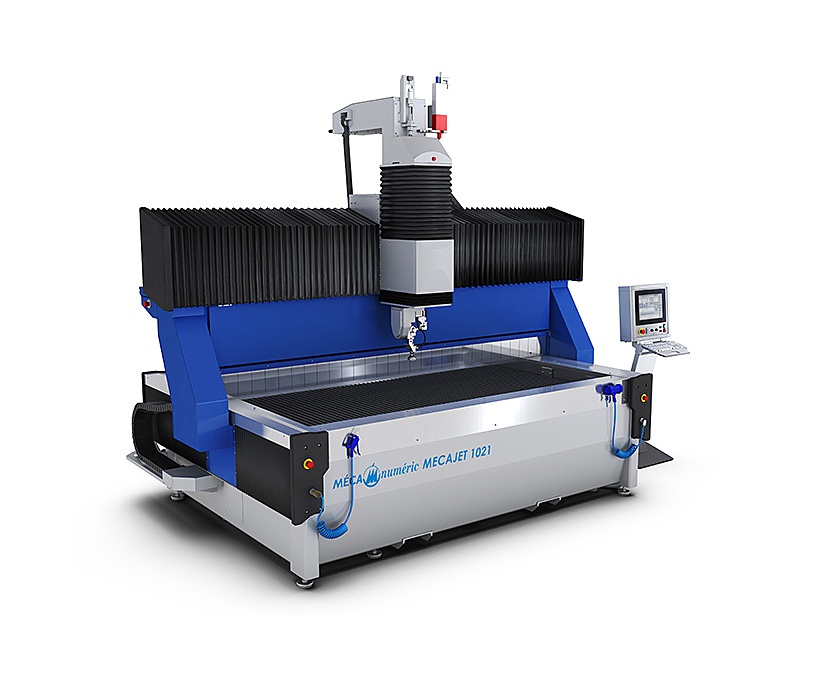

MECAJET II

Discover the new range of very high pressure Waterjet equipment MECAJET II designed and manufactured by MECANUMERIC, for cutting of several materials:

* Soft materials:
- rubber
- plastics
- leathers...

* And, with addition of abrasive, hard materials:
- metal
- ceramic
- glass
- stone
- composite materials...

STRENGTHS

• Designed and manufactured for intensive and professional use.
• Cutting of soft materials with pure water (rubber, plastics, foam, leather…) and hard materials (metal, ceramic, glass, stone, composites...) with addition of abrasive.
• Fixed table equipment with working size from 1000x2000 mm up to 2000x6000 mm in standard.
• Wide possibilities of customization.
• Driving system on numerical control CN9000 ISO and CAM software dedicated for water jet cutting applications.
• High pressure pumps at 4136 bar or 6200 bar.
• Patented cutting heads and systems of metering and feeding abrasive.
• 3 axis or continuous 5 axis cutting heads.
• Quality kinematics which integrates industrial components delivered by worldwide leaders in their sector and assembled on high inertia steel welded frame, stainless steel tank with adjustable water level.

OPTIONS

• 5 axis head for mounting on Z axis single head machines
• Additionnal 3 axis head for mounting on Z axis double head machines
• Divider, fourth horizontal digital axis for work on tubes
• Manual head orientation system +/- 45 ° angle
• Electronic flatness tracking system for 3-axis Z1 single head
• Auxiliary head for drilling - Electrospindle 2.2 KW / 15,000 rpm max
• Auxiliary drilling head, pneumatic
• Water softener
• Ballast system for rapid immersion
• Sludge suction and recovery system
• Aiming laser
• Abrasive water check valve
