WAZER

Mecanumeric is expanding its range of MECAJET, LABJET, QUICKJET and PUREJET water-jet cutting machines with the distribution in Europe and Africa of the WAZER© brand, the reference for low-cost prototyping and small series production machine.

WAM Software demo
WAM Software demo
  • Description
  • Technical datas
  • Fields of activity

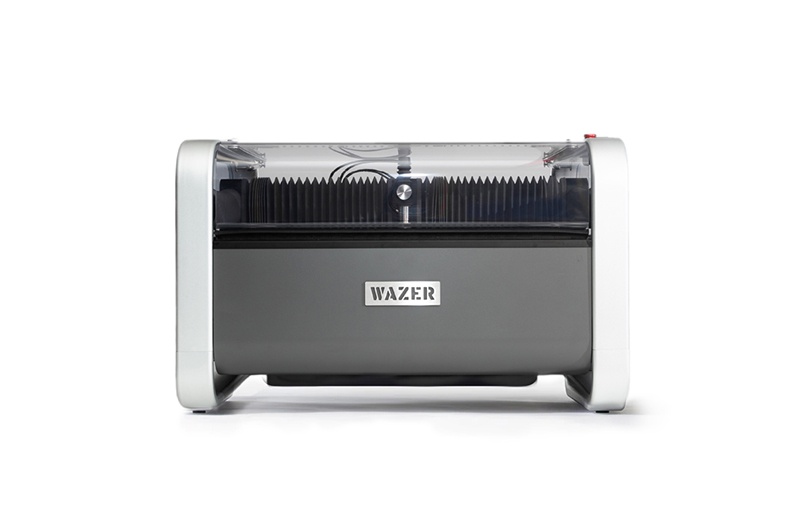

Designed for professional quality cutting in a small footprint, the WAZER waterjet cutting machine is ideal for abrasive cutting of a wide variety of materials:

  • Metal: steel, aluminium, copper, bronze, titanium, etc.
  • Plastics and derivatives
  • Rubber and derivatives
  • Composite materials: carbon fiber, fiberglass, garolite, etc.
  • Foams of all densities
  • Glass
  • Stone: marble, granite, slate, ceramic, porcelain, etc.

The WAZER range is ideal for prototyping, small series production, parts for testing and control...



STRENGHTS



For all workshops:



The WAZER is perfectly suited for use in schools, in design offices, in factories for production and quality control.



Easy installation:

  • All you need is an electrical socket and a water inlet and outlet

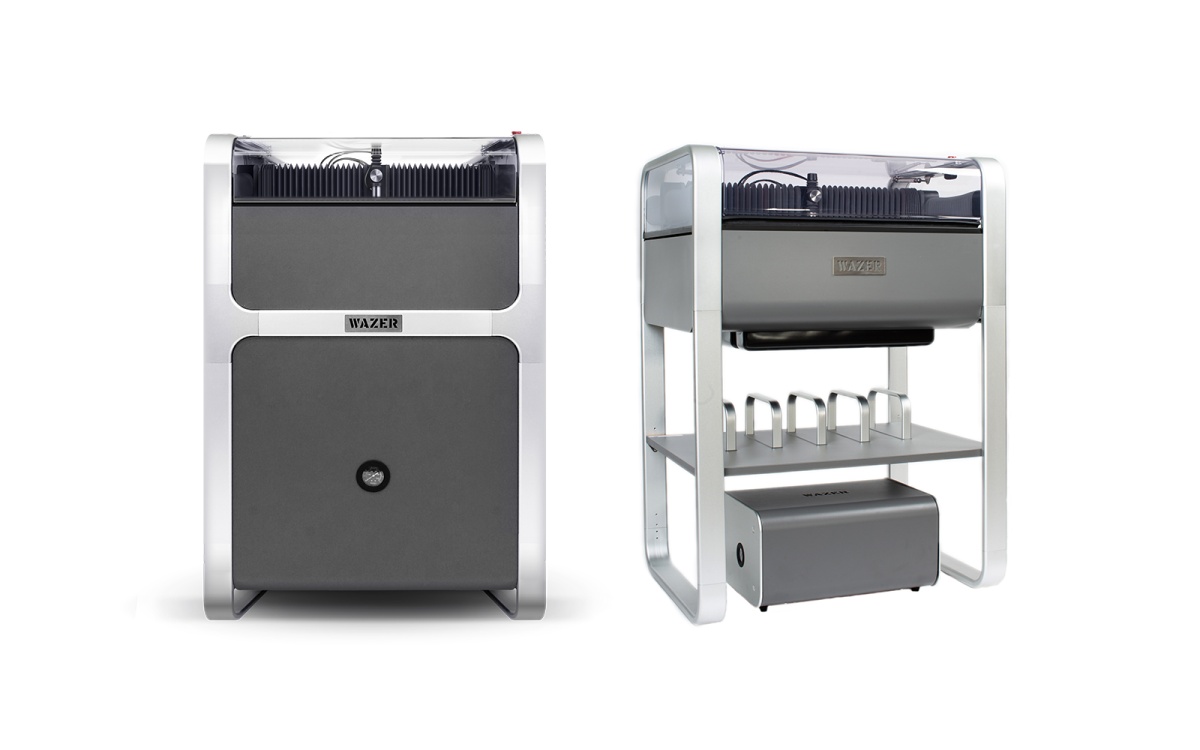

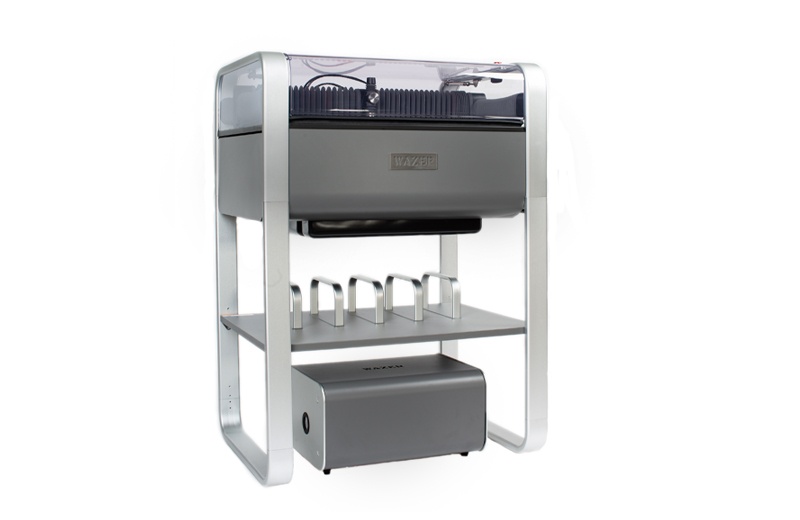

  • Small footprint (integrated pump into the PRO version or pump under the machine for the STANDUP version)
  • Available with or without machine support
  • Installation, use and maintenance procedure online

Intuitive use in 3 easy steps



Customized software:

  • Cloud software accessible directly from your computer,
  • Compatible with your .dxf and .svg files
  • Large library of materials and thicknesses

DIMENSIONS



  DESKTOP STAND UP PRO
X axis travel in mm 305 305 305
Y axis travel in mm 460 460 460
Z axis travel in mm 25 25

25

Tray dimensions in mm (L x W) 330 x 485 330 x 485 330 x 485
Length in mm 856 856 856
Width in mm 648 648 648
Height in mm

551

1220 1400
Average weight in kg (empty / full) 50 / 180 50 / 180 170 / 360



HIGH PRESSURE PUMP



  DESKTOP STAND UP PRO
Maximum allowable working pressure in bars 317

317

593
Pump weight in kg 42 42 included
Pump dimensions  (L x l x H) in mm 533 x 379 x 251 533 x 379 x 251 included
Water jet cutting

Water jet cutting
