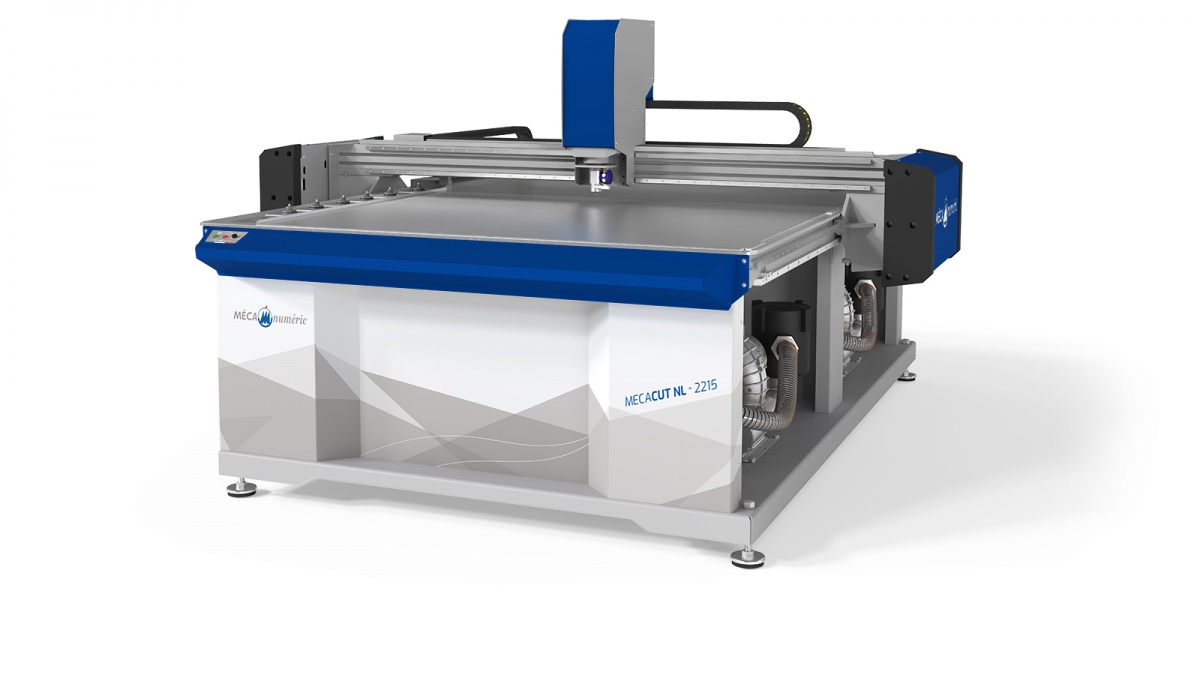

MECACUT NL
Agile, precise and compact CNC knife cutting, versatility on top!
- Description
- Technical datas
- Fields of activity
Equipment designed for fast and precise cutting of soft and light materials, ideal for packaging industry.
STRENGHTS :

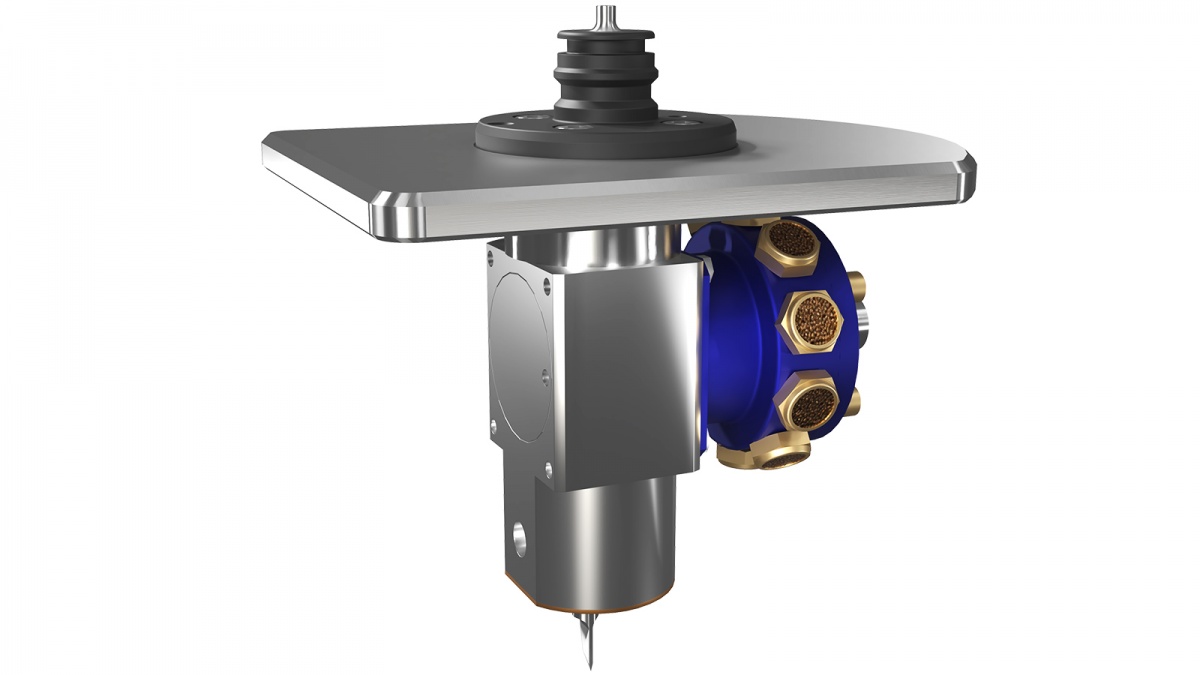

Large choice of cutting heads
- Cutting head with vibrating or non-vibrating blade
- Cutting head with orientable blade
- Non-vibrating disk
- Creasing wheels of 60 or 90 mm of diameter
- Marking head
Minimal space requirement
- Compact machine for a minimum footprint

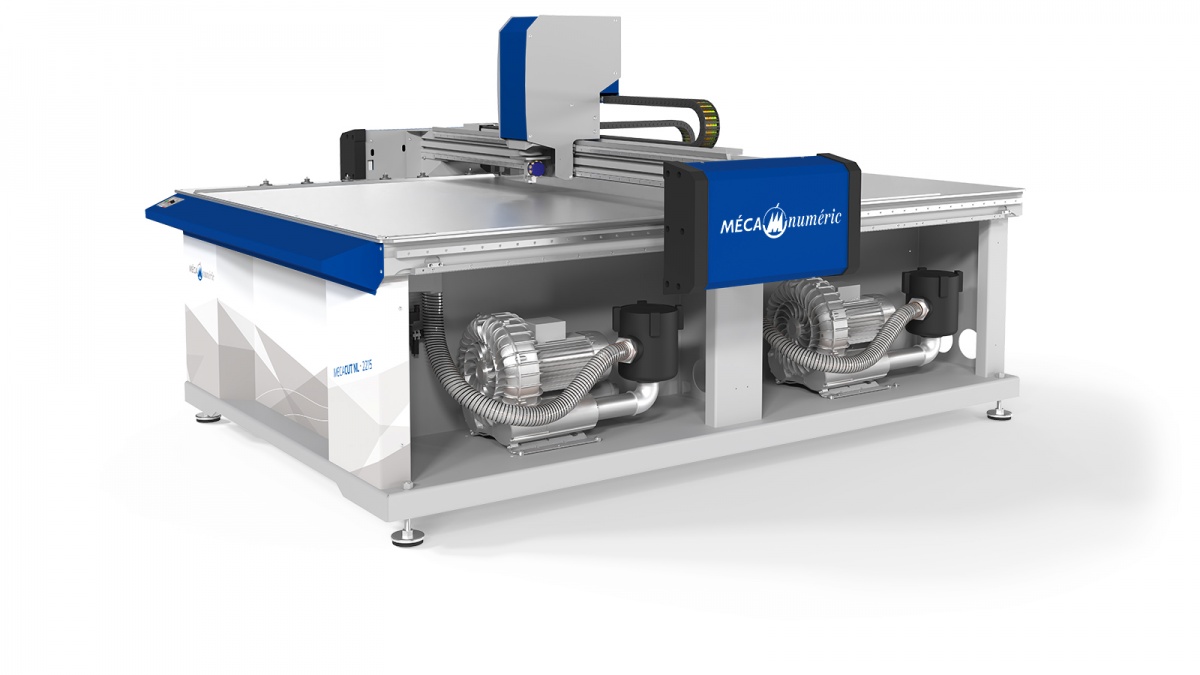

- Pumps integrated into the chassis to reduce footprint
- Very accessible working zone for operator thanks to limitations of the non-useful area
Knive cutting for many various materials :
- Cardboards
- Rubber and derivatives
- All thickness foams
- Textile
- Leather
- Adhesive films
- Rockwool, fibreglass, etc.
- Cork
- Pre-preg composites
- Lightweight plastics
TECHNICAL DATAS
- Structure : Monobloc chassis in mechanical welded high inertia steel and mobile gantry in mechanical welded aluminium machined in CNC.
- Guidance : Grinded rails and preloaded ball bearings.
- Transmission : Helical rack and pinion with ground helical teeth on X and Y axes and ball screw on Z axis.
- Motorisation : Brushless motors with absolute encoders on all axes XYZ and indexing blades.
DIMENSIONS
| MECACUT NL 1215 | MECACUT NL 2215 | |
| X axis travel in mm | 1210 | 2250 |
| Y axis travel in mm | 1540 | 1540 |
| Material maximum thickness in mm | 25 | 25 |
| Material maximum width in mm: useful / passage | 1540 / 1580 | 1540 / 1580 |
| Passage under gantry in mm | 60 | 60 |
| Length in mm | 1900 | 2950 |
| Width in mm | 2500 | 2500 |
| Height in mm | 1600 | 1600 |
| Average weight in kg | 1150 | 1600 |
